Rice Husk Example 🌾
This example is based on the following publication: Kätelhön et al. (2016). The original example used for introducing the TCM deals with a simultaneous technology 🔨 and regional 🌐 choice problem. It can also be solved with PULPO. The superstructure can be seen below:
Rice Example#
Problem Formulation#
The original problem formulation deals with an economic objective function, using factor constraints. With PULPO, the intention is to solve LCO problems with environmental objectives, but a function for economic factors could be considered for implementation as well, if data availability allows so.
Hence, the adapted problem formulation can be stated as follows:
Goal and Scope
Find the optimal system configuration, minimizing the global warming potential. First, in an unconstrained system.
📦 Functional Unit
For demonstration purposes, a final demand of 1 Mt of processed rice is specified.
🎯 Objective Function
Primary objective: Global warming potential (GWP).
🔄 Possible Choices
- Regional 🌐: (Rice husk collection 1 / Rice husk collection 2 / ... / Rice husk collection 5)
- Technology 🔨: (Rice husk boiler / Natural gas boiler / Wood pellet boiler)
⚙️ Additional Constraints
None.
Technosphere Matrix A#
In the Technosphere, new choices are added in a bottom-up fashion, extending the square matrix:
Biosphere Matrix B#
In the Biosphere, the corresponding elementary flows need to be added:
The final row for \(\textcolor{FireBrick}{\text{economic flows}}\) is derived from the factor requirements matrix and the factor price vector from the original example. Only the cost for natural gas has been lowered slightly (16 –> 13), to enforce the economic competitiveness of the NG boiler. Although integrating economic flows into the biosphere matrix is unconventional, this approach will later be useful for demonstrating a multi-objective trade-off assessment, without the need to introduce additional elements to account for economic impacts.
Characterization Factor Matrix Q#
The characterization factors are extended with a row for \(\textcolor{FireBrick}{\text{Cost (in million \$)}}\):

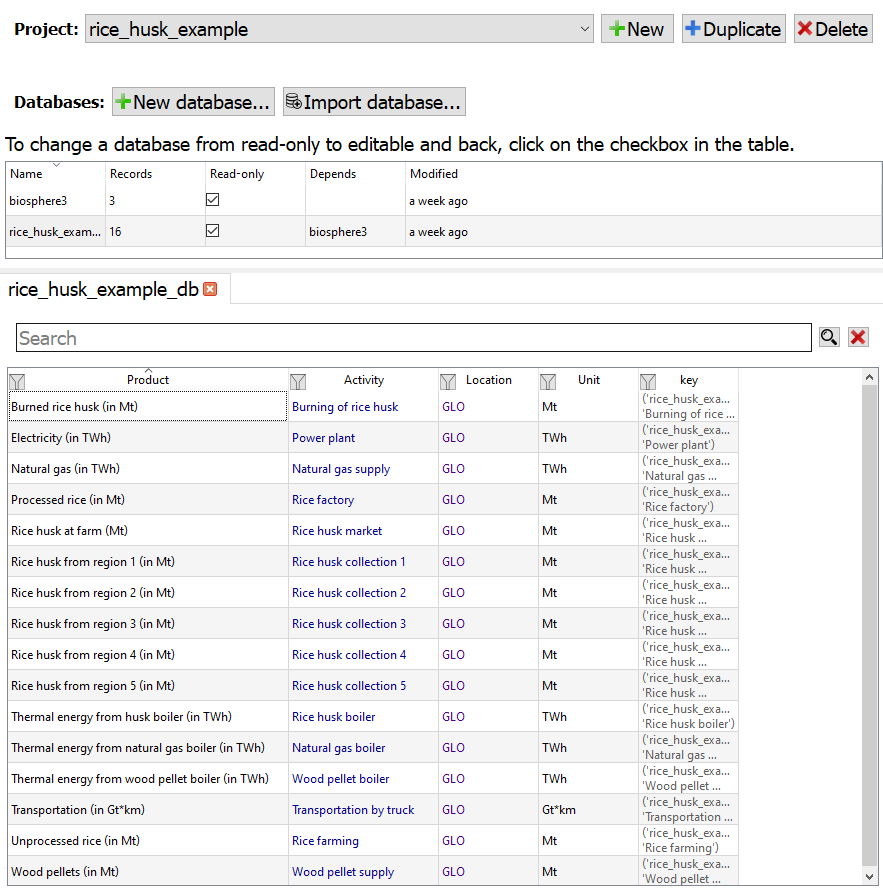

The whole system can be explored in activity-browser:
Resolution with PULPO 🐙
Import the necessary libraries
from pulpo import pulpo
import sys
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import copy
Plotting helpers used further below (plain matplotlib; nothing PULPO-specific).

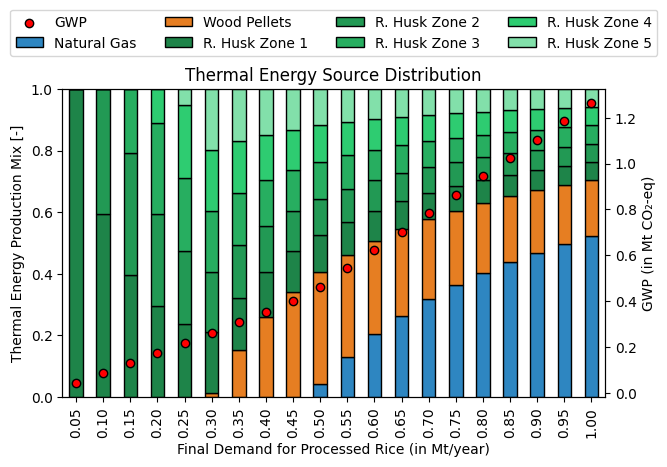

def plot_demand(results_df):
# Calculate contributions from Rice Husk zones
for zone in range(1, 6):
results_df[f'rice_husk_zone_{zone}'] = results_df['rice_husk_boiler'] * results_df[f'rice_husk_zone_{zone}']
# Combine the data into a new DataFrame for plotting
plot_data = results_df[['natural_gas_boiler', 'wood_pellet_boiler'] + [f'rice_husk_zone_{zone}' for zone in range(1, 6)]]
# Plotting
fig, ax1 = plt.subplots(figsize=(7, 4))
# Colors: 5 similar shades of green, plus colors for natural gas and wood pellets
colors = ['#2E86C1', '#E67E22', '#1E8449', '#229954', '#27AE60', '#2ECC71', '#82E0AA']
# Create a stacked bar plot
plot_data.plot(kind='bar', stacked=True, ax=ax1, color=colors, edgecolor='black')
# Set the x-axis to the final demand values
ax1.set_xticks(range(len(results_df['demand'])))
ax1.set_xticklabels([f'{x:.2f}' for x in results_df['demand']])
# Set labels and title
ax1.set_xlabel('Final Demand for Processed Rice (in Mt/year)')
ax1.set_ylabel('Thermal Energy Production Mix [-]')
ax1.set_title('Thermal Energy Source Distribution')
ax1.set_ylim(0, 1)
# Add a scatter plot that doesn't show up in the plot area but is included in the legend
ax1.scatter([np.nan], [np.nan], color='red', edgecolor='black', label='GWP')
# Adjust legend
ax1.legend(['GWP', 'Natural Gas', 'Wood Pellets', 'R. Husk Zone 1', 'R. Husk Zone 2',
'R. Husk Zone 3', 'R. Husk Zone 4', 'R. Husk Zone 5'],
loc='upper center', bbox_to_anchor=(0.5, 1.28), ncol=4)
# Create a second y-axis for the GWP impact
ax2 = ax1.twinx()
ax2.plot(range(len(results_df['demand'])), results_df['impact'], color='red', markeredgecolor='black', marker='o', linestyle='')
ax2.set_ylabel('GWP (in Mt CO₂-eq)')
# Show the plot
plt.show()

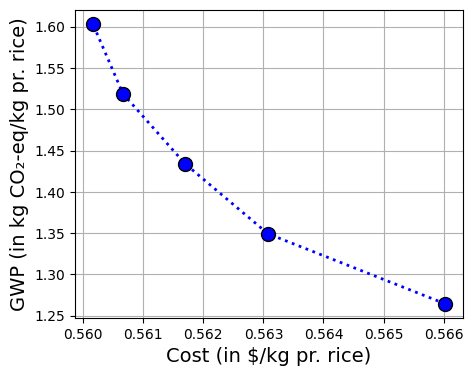

def plot_pareto(pareto_front):
# Convert pareto_front into two separate lists for plotting
costs, gwps = zip(*pareto_front)
# Create the Pareto front plot
plt.figure(figsize=(5, 4))
plt.plot(costs, gwps, marker='o', color='b', linestyle=':', linewidth=2, markersize=10, markeredgecolor='black')
# Set labels
plt.xlabel('Cost (in $/kg pr. rice)', fontsize=14)
plt.ylabel('GWP (in kg CO₂-eq/kg pr. rice)', fontsize=14)
# Add grid for better readability
plt.grid(True)
plt.show()

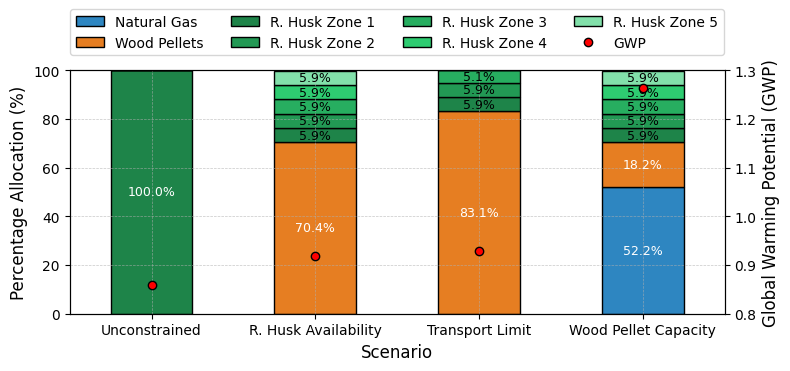

def plot_cases():
# Data
scenarios = ['Unconstrained', 'R. Husk Availability', 'Transport Limit', 'Wood Pellet Capacity']
technologies = ['Natural Gas', 'Wood Pellets'] + [f'R. Husk Zone {i}' for i in range(1, 6)]
# Percentage values for each technology under different scenarios
data = {
'Scenario': scenarios,
'Natural Gas': [0.0, 0.0, 0.0, 52.2],
'Wood Pellets': [0.0, 70.4, 83.1, 18.2],
'R. Husk Zone 1': [100.0, 5.9, 5.9, 5.9],
'R. Husk Zone 2': [0.0, 5.9, 5.9, 5.9],
'R. Husk Zone 3': [0.0, 5.9, 5.1, 5.9],
'R. Husk Zone 4': [0.0, 5.9, 0.0, 5.9],
'R. Husk Zone 5': [0.0, 5.9, 0.0, 5.9],
'GWP': [0.859, 0.919, 0.928, 1.264]
}
# Create DataFrame
df = pd.DataFrame(data)
# Set 'Scenario' as the index
df.set_index('Scenario', inplace=True)
# Prepare the DataFrame for plotting
plot_data = df[technologies]
# Colors: Define a cohesive color palette
colors = ['#2E86C1', '#E67E22', '#1E8449', '#229954', '#27AE60', '#2ECC71', '#82E0AA']
# Plotting
fig, ax1 = plt.subplots(figsize=(8, 4))
# Create a stacked bar plot
plot_data.plot(kind='bar', stacked=True, ax=ax1, color=colors, edgecolor='black')
# Set labels and title
ax1.set_xlabel('Scenario', fontsize=12)
ax1.set_ylabel('Percentage Allocation (%)', fontsize=12)
ax1.set_ylim(0, 100)
# Add percentage labels on each segment
for idx, scenario in enumerate(df.index):
cumulative = 0
for tech_idx, tech in enumerate(technologies):
value = df.loc[scenario, tech]
if value > 0:
height = value
y = cumulative + height / 2
ax1.text(idx, y, f'{value:.1f}%', ha='center', va='center', fontsize=9, color='white' if height > 15 else 'black')
cumulative += height
# Adjust x-axis labels
ax1.set_xticklabels(df.index, rotation=0, fontsize=10)
# Create a second y-axis for the GWP impact
ax2 = ax1.twinx()
ax2.plot(df.index, df['GWP'], color='red', marker='o', markeredgecolor='black', linestyle='', linewidth=2, label='GWP')
ax2.set_ylabel('Global Warming Potential (GWP)', fontsize=12)
ax2.set_ylim(0.8, 1.3)
ax2.tick_params(axis='y', labelsize=10)
# Adjust legend
handles1, labels1 = ax1.get_legend_handles_labels()
handles2, labels2 = ax2.get_legend_handles_labels()
ax1.legend(handles=handles1 + handles2, labels=labels1 + labels2, loc='upper center', bbox_to_anchor=(0.5, 1.28), ncol=4, fontsize=10)
# Add gridlines
ax1.grid(True, which='major', linestyle='--', linewidth=0.5, alpha=0.7)
# Adjust layout
plt.tight_layout()
# Show the plot
plt.show()
Set the project, database and method (objective function). In this example, the rice husk case study is used, which can be installed via a PULPO function (install_rice_husk_db).
pulpo.install_rice_husk_db()
project = "rice_husk_example"
database = "rice_husk_example_db"
method = "('my project', 'climate change')"
Elementary flow database created
Process database created
LCIA methods and CFs defined
Create a PulpoOptimizer instance. This class is used to interact with the LCI database and solve the optimization problem. It is specified by the project, database and method.
pulpo_worker = pulpo.PulpoOptimizer(project, database, method)
Import LCI data. After initializing the PulpoOptimizer instance, the LCI data is imported from the database.
pulpo_worker.get_lci_data()
Specify the functional unit. In this case, the functional unit is 1 Mt of processed rice. PULPO implements a search function (retrieve_processes) to find the processes that match the specified reference products (alternatively: keys, process name, region).
rice_factory = pulpo_worker.retrieve_processes(reference_products='Processed rice (in Mt)')
demand = {rice_factory[0]: 1}
Specify the choices. Here, the choices are regional 🌐 choices for rise husk collections, and technological ⛏ choices for boiler type selection.
The auxiliar choices are needed to resolve the issue that rice, when not used in the boiler must be burned instead.
(At this point, just accept. If you are curious about how this multi-functionality is technically adressed, refer to the paper, or reach out.)
## Rise husk collection
rice_husk_processes = ["Rice husk collection 1",
"Rice husk collection 2",
"Rice husk collection 3",
"Rice husk collection 4",
"Rice husk collection 5",]
rice_husk_collections = pulpo_worker.retrieve_processes(processes=rice_husk_processes)
## Boilers
boiler_processes = ["Natural gas boiler",
"Wood pellet boiler",
"Rice husk boiler"]
boilers = pulpo_worker.retrieve_processes(processes=boiler_processes)
## Auxiliar (Ignore for now!)
auxiliar_processes = ["Rice husk market",
"Burning of rice husk"]
auxiliar = pulpo_worker.retrieve_processes(processes=auxiliar_processes)
## Combine to create the choices dictionary
## For each kind of choice, assign a 'label' (e.g. 'boilers')
## To each possible choice, assign a process capacity; float('inf') means no limit
choices = {'Rice Husk (Mt)': {rice_husk_collections[0]: float('inf'),
rice_husk_collections[1]: float('inf'),
rice_husk_collections[2]: float('inf'),
rice_husk_collections[3]: float('inf'),
rice_husk_collections[4]: float('inf')},
'Thermal Energy (TWh)': {boilers[0]: float('inf'),
boilers[1]: float('inf'),
boilers[2]: float('inf')},
'Auxiliar': {auxiliar[0]: float('inf'),
auxiliar[1]: float('inf')}}
Instantiate and solve the optimization model
pulpo_worker.instantiate(choices=choices, demand=demand)
results = pulpo_worker.solve()
Creating Instance
Instance created
optimal solution found: 0.8585406610795238
Optimization problem solved using Highspy
Save and summarize the results
pulpo_worker.save_results(name='rice_example_unconstrained.xlsx')
pulpo_worker.summarize_results(zeroes=True)
Results saved to rice_example_unconstrained.xlsx
Total Impact(s)
| Weight | Value | |
|---|---|---|
| Method | ||
| ('my project', 'climate change') | 1 | 0.858541 |
Choices Made
Rice Husk (Mt)
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Rice husk collection 1 | Rice husk from region 1 (in Mt) | GLO | 0.506 | inf |
Thermal Energy (TWh)
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Rice husk boiler | Thermal energy from husk boiler (in TWh) | GLO | 2.2 | inf |
Auxiliar
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Burning of rice husk | Burned rice husk (in Mt) | GLO | 0.184 | inf |
Constraints
'No constraint data to display.'
It can be seen that, in the unconstrained case minimizing the GWP, the optimal solution is to use the rice husk boiler and the rice husk collection 1. The minimum GWP is 0.859 Mt CO2-eq per Mt of processed rice. Let us store the relevant results:
So far, we said that the case is unconstrained. This means that we don’t consider any relevant capacity constraints on any of the processes. Let’s now move to the constrained case!
Constrained Case 🔏
We will consider three different simple constrained cases:
Choice Capacity Constraints ↔#
⚙️ Additional Constraints
Add a constraint to the rice husk collection of 0.03 Mt per zone.
choices_constrained = copy.deepcopy(choices)
choices_constrained['Rice Husk (Mt)'] = {rice_husk_collections[0]: 0.03,
rice_husk_collections[1]: 0.03,
rice_husk_collections[2]: 0.03,
rice_husk_collections[3]: 0.03,
rice_husk_collections[4]: 0.03}
Repeat the solution steps …
pulpo_worker.instantiate(choices=choices_constrained, demand=demand)
results = pulpo_worker.solve()
Creating Instance
Instance created
optimal solution found: 0.9186618840850095
Optimization problem solved using Highspy
pulpo_worker.summarize_results(zeroes=True)
Total Impact(s)
| Weight | Value | |
|---|---|---|
| Method | ||
| ('my project', 'climate change') | 1 | 0.918662 |
Choices Made
Rice Husk (Mt)
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Rice husk collection 1 | Rice husk from region 1 (in Mt) | GLO | 0.03 | 0.03 |
| Rice husk collection 2 | Rice husk from region 2 (in Mt) | GLO | 0.03 | 0.03 |
| Rice husk collection 3 | Rice husk from region 3 (in Mt) | GLO | 0.03 | 0.03 |
| Rice husk collection 4 | Rice husk from region 4 (in Mt) | GLO | 0.03 | 0.03 |
| Rice husk collection 5 | Rice husk from region 5 (in Mt) | GLO | 0.03 | 0.03 |
Thermal Energy (TWh)
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Wood pellet boiler | Thermal energy from wood pellet boiler (in TWh) | GLO | 1.547826 | inf |
| Rice husk boiler | Thermal energy from husk boiler (in TWh) | GLO | 0.652174 | inf |
Auxiliar
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Burning of rice husk | Burned rice husk (in Mt) | GLO | 0.54 | inf |
Constraints
'No constraint data to display.'
When constraints are specified on the availability of rice husk, the optimizer chooses to use all the available rice husk that can be transported from every zone. The remaining thermal energy is provided by the wood pellet boiler.
Upper Limits ⬆#
Upper limits can be enforced as well on processes that are not part of the choices. This can be done using the upper_limit parameter in the instantiate method. Let’s see an example, where we limit the transportation process to 0.37 Gt*km (This value has no rational meaning, and is just an example to demonstrate the upper limit functionality):
⚙️ Additional Constraints
Add a constraint of 0.37 Gt*km to the availability of transportation.
# Retrieve the transport process
transportation = pulpo_worker.retrieve_processes(processes=["Transportation by truck"])
upper_limit = {transportation[0]: 0.37}
Repeat the solution steps, specifying now the “upper_limit” parameter during instantiation …
pulpo_worker.instantiate(choices=choices_constrained, demand=demand, upper_limit=upper_limit)
results = pulpo_worker.solve()
Creating Instance
Instance created
optimal solution found: 0.9275997924554046
Optimization problem solved using Highspy
pulpo_worker.summarize_results(zeroes=True)
Total Impact(s)
| Weight | Value | |
|---|---|---|
| Method | ||
| ('my project', 'climate change') | 1 | 0.9276 |
Choices Made
Rice Husk (Mt)
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Rice husk collection 1 | Rice husk from region 1 (in Mt) | GLO | 0.030000 | 0.03 |
| Rice husk collection 2 | Rice husk from region 2 (in Mt) | GLO | 0.030000 | 0.03 |
| Rice husk collection 3 | Rice husk from region 3 (in Mt) | GLO | 0.025556 | 0.03 |
Thermal Energy (TWh)
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Wood pellet boiler | Thermal energy from wood pellet boiler (in TWh) | GLO | 1.828019 | inf |
| Rice husk boiler | Thermal energy from husk boiler (in TWh) | GLO | 0.371981 | inf |
Auxiliar
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Burning of rice husk | Burned rice husk (in Mt) | GLO | 0.604444 | inf |
Constraints
Constraints Upper
| Key | Metadata | Value | Limit | |
|---|---|---|---|---|
| ID | ||||
| 15 | (rice_husk_example_db, Transportation by truck) | Transportation by truck | Transportation (in G... | 0.37 | 0.37 |
It can be seen that the optimizer chooses to source rice husk from zones 1-3 and the remaining demand for thermal heat is supplied by the wood pellet boiler.
Upper Limit on Wood Pellet Boiler#
⚙️ Additional Constraints
Add a constraint of 0.1 Mt to the supply of wood pellets.
wood_pellet_supply = pulpo_worker.retrieve_processes(processes=["Wood pellet supply"])
upper_limit = {wood_pellet_supply[0]: 0.1}
pulpo_worker.instantiate(choices=choices_constrained, demand=demand, upper_limit=upper_limit)
results = pulpo_worker.solve()
Creating Instance
Instance created
optimal solution found: 1.2643985959378212
Optimization problem solved using Highspy
pulpo_worker.summarize_results(zeroes=True)
Total Impact(s)
| Weight | Value | |
|---|---|---|
| Method | ||
| ('my project', 'climate change') | 1 | 1.264399 |
Choices Made
Rice Husk (Mt)
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Rice husk collection 1 | Rice husk from region 1 (in Mt) | GLO | 0.03 | 0.03 |
| Rice husk collection 2 | Rice husk from region 2 (in Mt) | GLO | 0.03 | 0.03 |
| Rice husk collection 3 | Rice husk from region 3 (in Mt) | GLO | 0.03 | 0.03 |
| Rice husk collection 4 | Rice husk from region 4 (in Mt) | GLO | 0.03 | 0.03 |
| Rice husk collection 5 | Rice husk from region 5 (in Mt) | GLO | 0.03 | 0.03 |
Thermal Energy (TWh)
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Natural gas boiler | Thermal energy from natural gas boiler (in TWh) | GLO | 1.147826 | inf |
| Rice husk boiler | Thermal energy from husk boiler (in TWh) | GLO | 0.652174 | inf |
| Wood pellet boiler | Thermal energy from wood pellet boiler (in TWh) | GLO | 0.400000 | inf |
Auxiliar
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Burning of rice husk | Burned rice husk (in Mt) | GLO | 0.54 | inf |
Constraints
Constraints Upper
| Key | Metadata | Value | Limit | |
|---|---|---|---|---|
| ID | ||||
| 12 | (rice_husk_example_db, Wood pellet supply) | Wood pellet supply | Wood pellets (in Mt) | GLO | 0.1 | 0.1 |
Summary of Cases:#
plot_cases()
Final Demand Variation 📦
In this section, we are varying the final demand and observe the consequence on the total GWP impact, as well as the technology and regional composition.
The following code performs a loop over various demand values ranging from 0.05 Mt to 1.00 Mt of rice.
Disclaimer:
The syntax used here to access the internal variables of the optimization problem is not as intuitive and requires profound knowledge of the data structures of PULPO (e.g., the process map). We are working on simplifying this, to make it easier for users to access these variables outside the “summarize” and “save” functions.
📦 Functional Unit
A final demand range of 0.05 to 1.00 Mt of processed rice is specified.
# List of final demand values
final_demand_values = [i * 0.05 for i in range(1, 21)]
# Define the entries to be analysed
process_map = pulpo_worker.lci_data['process_map']
boilers = ['Natural gas boiler', 'Wood pellet boiler', 'Rice husk boiler']
zones = [f'Rice husk collection {i}' for i in range(1, 6)]
# Mapping process IDs
boiler_ids = [process_map[('rice_husk_example_db', boiler)] for boiler in boilers]
zone_ids = [process_map[('rice_husk_example_db', zone)] for zone in zones]
# Initialize results dictionary
results_list = {
'demand': [],
'impact': [],
'natural_gas_boiler': [],
'wood_pellet_boiler': [],
'rice_husk_boiler': [],
**{f'rice_husk_zone_{i}': [] for i in range(1, 6)}
}
for demand_value in final_demand_values:
# Set the demand for processed rice
demand_dict = {rice_factory[0]: demand_value}
# Instantiate and solve the optimization model
pulpo_worker.instantiate(choices=choices_constrained, demand=demand_dict, upper_limit=upper_limit)
results = pulpo_worker.solve()
print()
# Append the results to the list
results_list['demand'].append(demand_value)
results_list['impact'].append(pulpo_worker.instance.OBJ())
# Normalize and append boiler results
total_boilers = sum(pulpo_worker.instance.scaling_vector[i].value for i in boiler_ids)
for boiler, boiler_id in zip(boilers, boiler_ids):
results_list[boiler.lower().replace(' ', '_')].append(
pulpo_worker.instance.scaling_vector[boiler_id].value / total_boilers
)
# Normalize and append zone results
total_zones = sum(pulpo_worker.instance.scaling_vector[i].value for i in zone_ids)
for i, zone_id in enumerate(zone_ids, start=1):
results_list[f'rice_husk_zone_{i}'].append(
pulpo_worker.instance.scaling_vector[zone_id].value / total_zones
)
# Convert the results_list dictionary to a pandas DataFrame
results_df = pd.DataFrame(results_list)
Creating Instance
Instance created
optimal solution found: 0.04292703305397619
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.0860007607765484
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.12922118318880657
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.17258830026727318
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.21610211201000293
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.25999171135723337
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.3070395808377888
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.3540874503183442
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.4011353197988996
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.4625888956046818
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.5427698656379958
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.6229508356713098
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.7031318057046237
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.7833127757379377
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.8634937457712515
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 0.9436747158045654
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 1.0238556858378796
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 1.1040366558711932
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 1.1842176259045074
Optimization problem solved using Highspy
Creating Instance
Instance created
optimal solution found: 1.2643985959378212
Optimization problem solved using Highspy
Plot the results in a bar chart. While this approach works, the visualization of results could benefit from standardized plots, which we are planning to implement. Currently, users need to manually extract the relevant values and create the visualizations that best meet their needs.
plot_demand(results_df)
Multi-Objective / Trade-off 🎯
In this section, we will first optimize the system using the \(\textcolor{FireBrick}{\text{economic flows}}\) as objective, and then analyse the trade-off. To that end, we will create a new pulpo_worker, which imports both impact categories. For now, we specify a weight of 0 for the environmental and a weight of 1 for the economic objective:
🎯 Objective Function
Primary objective: Cost.
methods = {"('my project', 'climate change')": 0, "('my project', 'economic flow')": 1}
pulpo_worker_multi = pulpo.PulpoOptimizer(project, database, methods)
pulpo_worker_multi.get_lci_data()
With the worker created, we can proceed to instantiate and solve the problem, now with the economic objective function:
pulpo_worker_multi.instantiate(choices=choices_constrained, demand=demand, upper_limit=upper_limit)
results = pulpo_worker_multi.solve()
Creating Instance
Instance created
optimal solution found: 560.1599916511774
Optimization problem solved using Highspy
pulpo_worker_multi.summarize_results(zeroes=True)
Total Impact(s)
| Weight | Value | |
|---|---|---|
| Method | ||
| ('my project', 'economic flow') | 1 | 560.159992 |
| ('my project', 'climate change') | 0 | 1.603619 |
Choices Made
Rice Husk (Mt)
| Value | Capacity | |
|---|---|---|
| Metadata |
Thermal Energy (TWh)
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Natural gas boiler | Thermal energy from natural gas boiler (in TWh) | GLO | 2.2 | inf |
Auxiliar
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Burning of rice husk | Burned rice husk (in Mt) | GLO | 0.69 | inf |
Constraints
'No constraint data to display.'
As anticipated, the natural gas option minimizes costs (0.56 $/kg processed rice). However, this cost reduction leads to a significant increase in the climate change impact (1.26 → 1.60 kg CO2e/kg processed rice). Given these trade-offs, how does the Pareto front appear? For that purpose, we are going to use the epsilon-constrained method, constraining the environmental objective between the values corresponding to the environmental optimum and the economic optimum:
lower_impact = pulpo_worker.instance.impacts["('my project', 'climate change')"].value
upper_impact = pulpo_worker_multi.instance.impacts_calculated["('my project', 'climate change')"].value
epsilon_list = np.linspace(lower_impact, upper_impact, num=5)
Indicator constraints can be specified in PULPO using the upper_imp_limit parameter of the instantiate function, as can be seen in the loop below:
🎯 Objective Function
Primary objective: Cost.
Secondary objective: Global warming potential (GWP) --> Constrainted in relevant range via "upper_imp_limit".
# Initialize an empty list to store the Pareto front data
pareto_front = []
gw_category = "('my project', 'climate change')"
ef_category = "('my project', 'economic flow')"
for epsilon in epsilon_list:
# Adjust the internal objective weights
epsilon_constraint = {"('my project', 'climate change')": epsilon}
pulpo_worker_multi.instantiate(choices=choices_constrained, demand=demand, upper_limit=upper_limit, upper_imp_limit=epsilon_constraint)
results = pulpo_worker_multi.solve()
# Calculate the impacts
impacts = {x: pulpo_worker_multi.instance.impacts[x].value for x in pulpo_worker_multi.instance.impacts}
# Save the impacts in the Pareto front list (cost divided by 1000)
pareto_front.append((impacts[ef_category]/1000, impacts[gw_category]))
# Print the impacts for each iteration
print(f"Cost [$/kg processed rice]:{impacts[ef_category]/1000}")
print(f"GWP [kg CO2-eq/kg processed rice]: {impacts[gw_category]}")
print()
Creating Instance
Instance created
optimal solution found: 566.0239046365155
Optimization problem solved using Highspy
Cost [$/kg processed rice]:0.5660239046365154
GWP [kg CO2-eq/kg processed rice]: 1.2643985959378212
Creating Instance
Instance created
optimal solution found: 563.0762343107888
Optimization problem solved using Highspy
Cost [$/kg processed rice]:0.5630762343107888
GWP [kg CO2-eq/kg processed rice]: 1.3492037971199355
Creating Instance
Instance created
optimal solution found: 561.6963757338642
Optimization problem solved using Highspy
Cost [$/kg processed rice]:0.5616963757338642
GWP [kg CO2-eq/kg processed rice]: 1.4340089983020499
Creating Instance
Instance created
optimal solution found: 560.6623152947056
Optimization problem solved using Highspy
Cost [$/kg processed rice]:0.5606623152947057
GWP [kg CO2-eq/kg processed rice]: 1.5188141994841644
Creating Instance
Instance created
optimal solution found: 560.1599916511774
Optimization problem solved using Highspy
Cost [$/kg processed rice]:0.5601599916511774
GWP [kg CO2-eq/kg processed rice]: 1.603619400666279
plot_pareto(pareto_front)
This type of (constrained) trade-off assessment highlights the inherent compromises involved in designing a production system with multiple criteria. In this example, the two extreme points (known as anchor points) demonstrate that a significant reduction in GWP (from 1.60 to 1.26 kg CO2-eq) can be achieved with only a slight increase in cost (from 0.560 to 0.566 $). The Pareto front, defined by the 5 points shown, illustrates how balanced solutions can be realized.
Internal Constraint due to Multi-Functionality
Following the notion highlighted at the end of the previous section, let’s investigate what happens if more thermal energy is required than the one that can be provided by the rice husk. This is done by adding another demand for the functional unit:
📦 Functional Unit
A final demand range of 1.00 Mt of processed rice is specified, in addition to 10 TWh of thermal energy.
demand_thermal = {rice_factory[0]: 1,
'Thermal Energy (TWh)': 10}
pulpo_worker.instantiate(choices=choices, demand=demand_thermal)
results = pulpo_worker.solve()
Creating Instance
Instance created
optimal solution found: 1.2195709588130852
Optimization problem solved using Highspy
pulpo_worker.summarize_results(zeroes=True)
Total Impact(s)
| Weight | Value | |
|---|---|---|
| Method | ||
| ('my project', 'climate change') | 1 | 1.219571 |
Choices Made
Rice Husk (Mt)
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Rice husk collection 1 | Rice husk from region 1 (in Mt) | GLO | 0.69 | inf |
Thermal Energy (TWh)
| Value | Capacity | |
|---|---|---|
| Metadata | ||
| Wood pellet boiler | Thermal energy from wood pellet boiler (in TWh) | GLO | 9.2 | inf |
| Rice husk boiler | Thermal energy from husk boiler (in TWh) | GLO | 3.0 | inf |
Auxiliar
| Value | Capacity | |
|---|---|---|
| Metadata |
Constraints
'No constraint data to display.'
As can be seen from the choices made by the optimizer, the rice husk boiler is used to its full capacity, conditioned by the demand for rice:
The rest of the thermal energy is provided by the wood pellet boiler.
